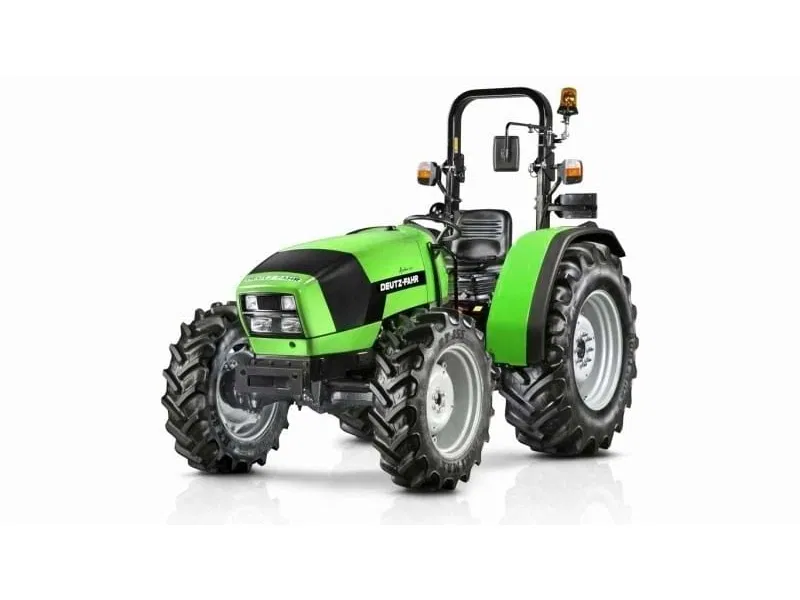

AGROLUX 410 ROPS

The Deutz-Fahr Agrolux 410 delivers extraordinary performance and extraordinary reliability together with extremely low running costs.

Highly regarded, the Agrolux Series are incredibly versatile and boast state of the art technology; these are, to all intents and purposes, the perfect tractors.

With an optimum weight to power ratio, a highly efficient PTO and an impressive high performance hydraulic system, the Agrolux tractors are also the ideal specialised machines for crops planted in particularly broad rows.

75 hp 4 cylinder turbo intercooled engine
Forward/Reverse synchro shuttle
Folding ROPS frame

4 wheel wet disc brakes
Direct drive PTO

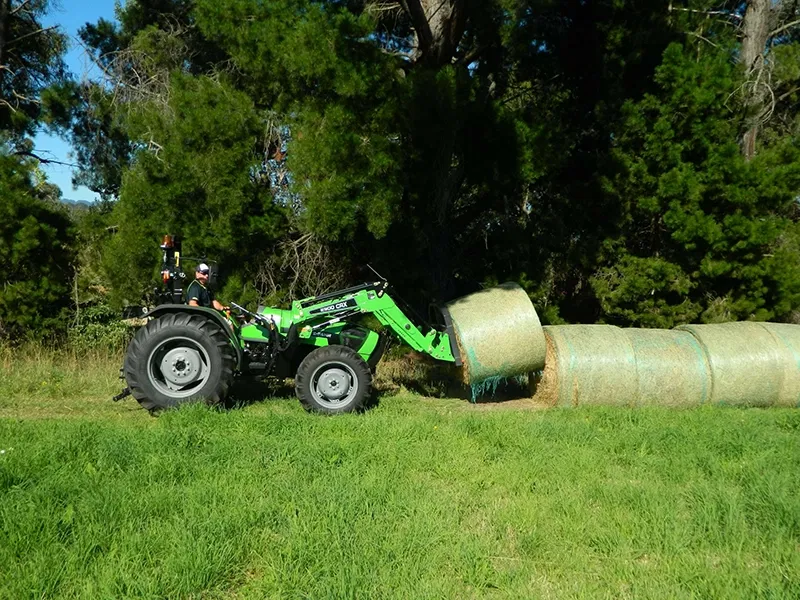

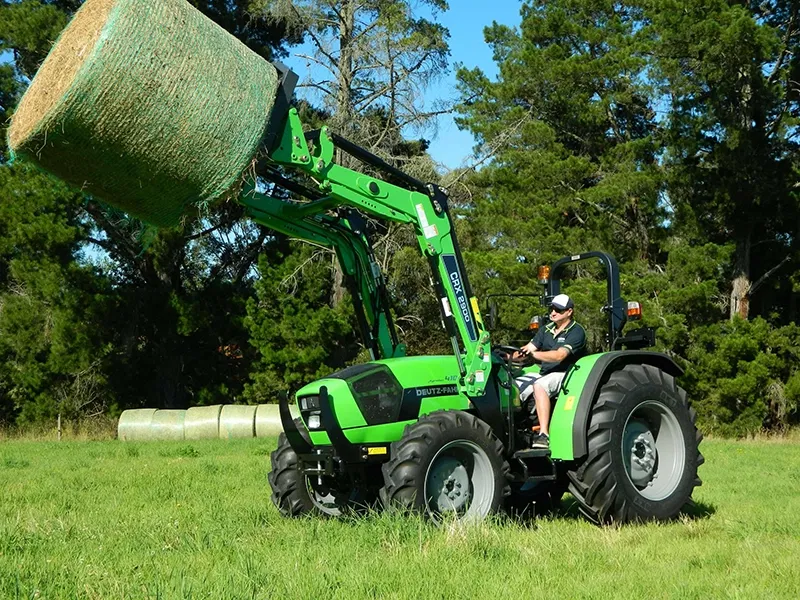

CRX front end loader option

Enquire Now

EXPERIENCE THE AGROLUX 410

Find out more about the Agrolux 410 with this snapshot.

AGROLUX 410 4 WHEEL BRAKING

Experience the benefits of 4 Wheel Braking with the Agrolux 410.

Features

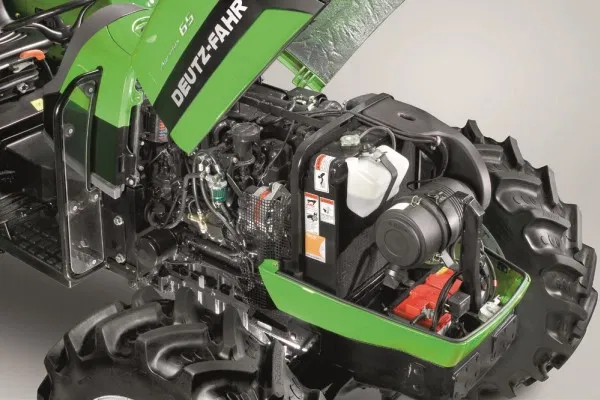

Engine

The engine fitted to the Agrolux Series of tractor is the fuel efficient SDF 1000 series. This engine is Tier 3 and comes in 3 cylinder turbocharged, or 4 cylinder turbocharged intercooled formats, depending on model. With this technology there is a new piston bowl profile for a cleaner air to fuel mix, as well as a higher compression ratio, resulting in greater power and increased fuel efficiency.

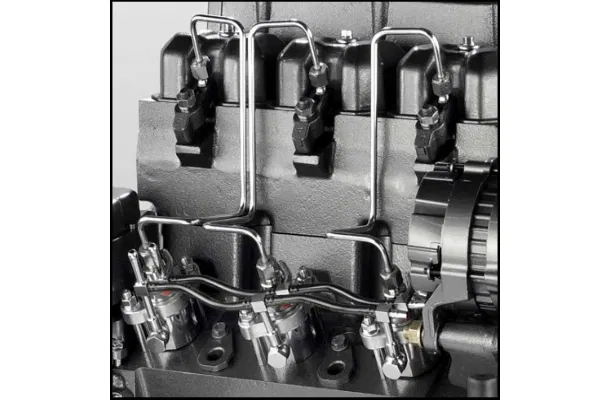

Bosch Individual Injectors

Each cylinder on the Agrolux Series has its own individual Bosch injection pump, which differs from the rotary system used on most other diesel engines (as each individual injector pump is lubricated by engine oil and not diesel). The other advantage is the delivery to each cylinder is the same – each cylinder gets a high pressure direct injection of diesel resulting in better fuel usage.

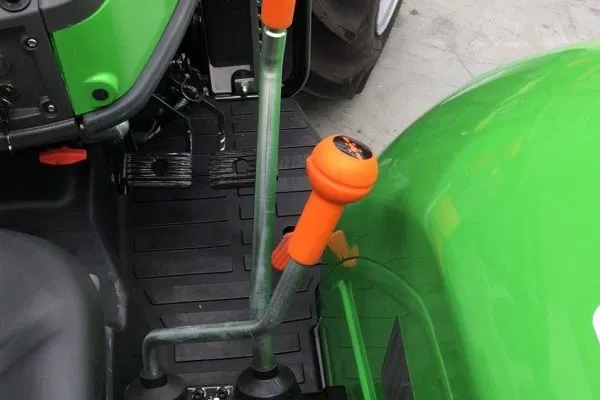

Syncro Shuttle

On the Agrolux Series the same speed can be achieved going forward as in reverse. This is done by a dedicated forward/reverse synchronised shuttle, resulting in quick shuttle movements when using a loader or forklift.

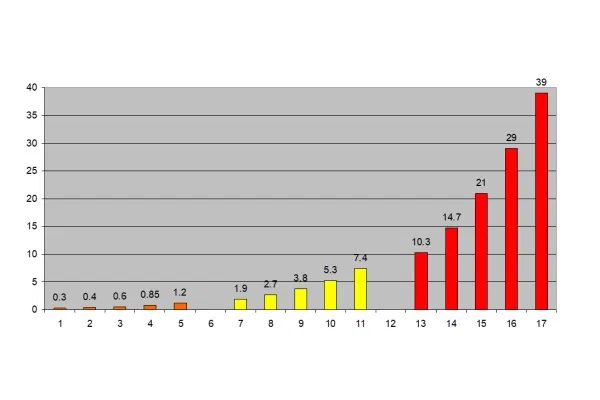

Wide Range of Gear Choices

The gearbox is fitted with 15 forward speeds and 15 reverse. Speeds range from 240m/hr right up to 40km/h, thereby allowing the tractor to complete many different tasks. The gearbox is a made up of helical cut gears, all speed gear changes are synchronised and it’s fitted with a heavy duty 11” clutch, making this gearbox exceptionally durable.

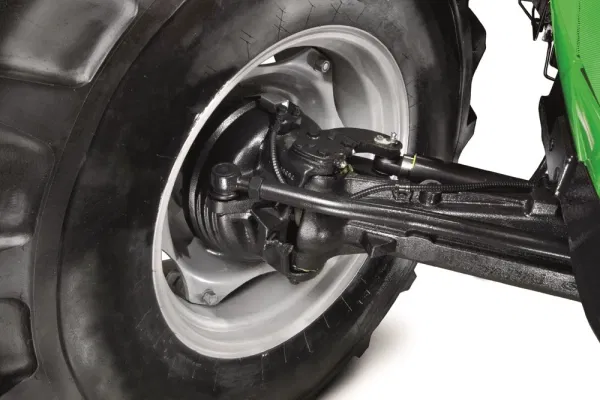

4 Wheel Wet Disc Brakes

Working on slopes means constantly stopping the tractor. Fitted as a standard feature are four-wheel independent wet disc brakes. This system is hydraulically operated and allows all four wheels to brake independently when the brake pedal depressed, providing a safe working environment.

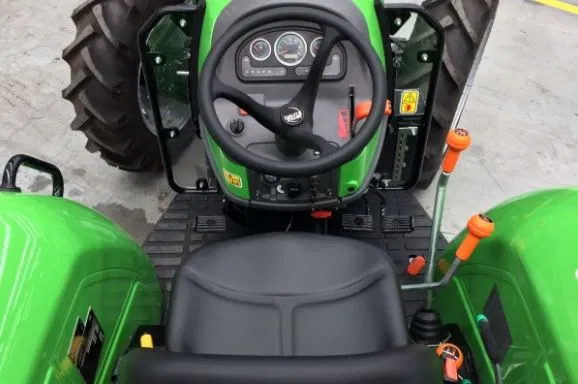

Comfortable Operating Area

The workplace of the Agrolux is a comfortable, secure space. Fitted with a semi-mounted platform with rubber matting, the operator can enter and exit the tractor easily without the risk of slipping. All controls are placed in a logical position, making the operation of any task easy.

Direct Drive PTO

The direct drive PTO system by Deutz-Fahr eliminates power losses from engine to PTO shaft. This system has a direct drive from engine to PTO with a single gear reduction, making the PTO power very close to the engine horsepower and thereby optimising output.

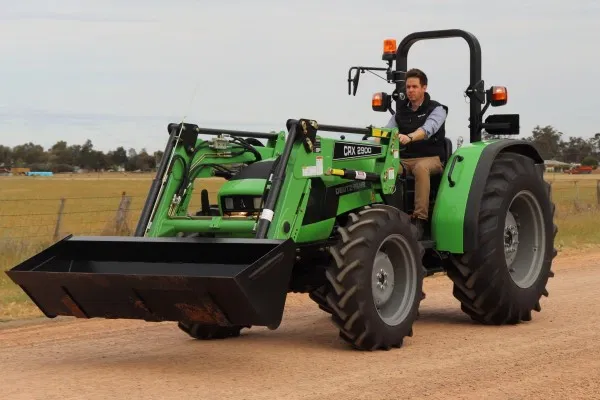

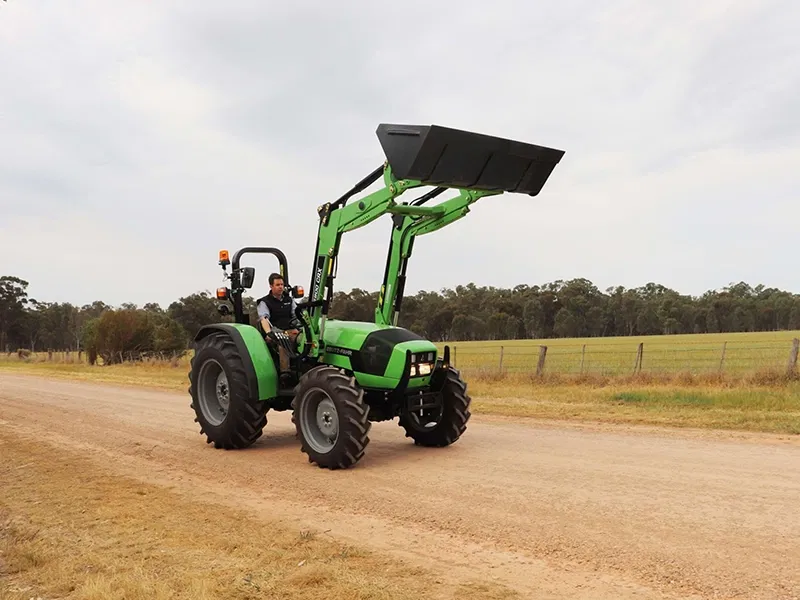

Front End Loader Option

Most Agrolux models are fitted with a front end loader, that has been designed in Australia to meet our tough demands. All loaders are level lift and joystick control and incorporate a Euro 11 hitch, allowing for quick and easy attaching and detaching of buckets or forks.

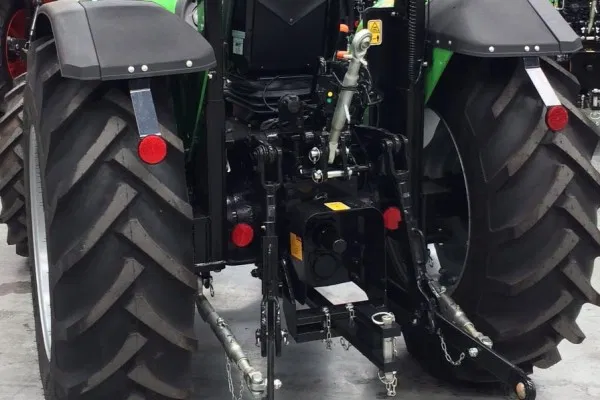

High Capacity Hydraulics

Achieving a standard hydraulic pump output across both Agrolux models of 42.2 l/min, and featuring an open centre hydraulic system, plus rear auxiliary remotes as standard, rear hitch lift capacity is a heavy-hitting 2,460kg (310 model) and 3,000kg (410 model).
